INSULATED CHIP-SHAPED TERMINALS - 1

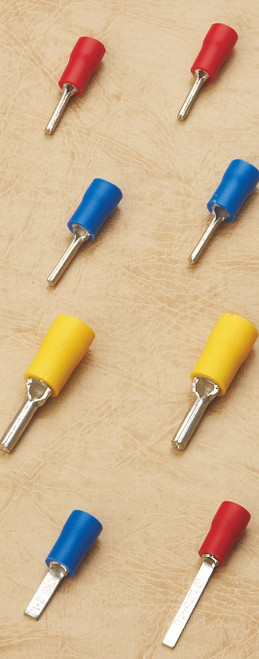

Insulated Chip-Shaped Terminal is designed for secure electrical terminations in medium-capacity wiring applications. Manufactured with high-conductivity copper and a durable PVC insulation sleeve, it ensures stable electrical performance and enhanced mechanical protection during installation.
Its compact chip-shaped profile provides easy wire insertion and strong crimping capability, making it suitable for both industrial and commercial wiring systems where reliable current flow and vibration resistance are required.
SPECIFICATION: 1.5 ̴ 2.5mm² (16-14) , Imax =19A
| Product Name | Dimension F(mm) | Dimension L(mm) | Dimension A(mm) | D(mm) |
| PS-DBV 2-9 | 2.8 | 19.0 | 9.0 | 4.9 |
| PS-DBV 2-15 | 2.3 | 25.0 | 15.0 | |
| PS DBV 2-18 | 2.3 | 28.0 | 18.0 |
KEY FEATURES
• Chip-shaped design ensures firm wire seating and consistent crimping strength.
• PVC insulated sleeve provides excellent dielectric protection and safe handling.
• High-conductivity copper barrel enhances electrical efficiency and reduces heat buildup.
• Rated for 48A, suitable for medium-load circuits and distribution systems.
• Corrosion-resistant construction for long-term reliability in harsh environments.
APPLICATIONS
• Electrical panel wiring and termination points.
• Industrial machinery control circuits and power distribution.
• Automotive wiring harnesses requiring medium-load connectors.
• Commercial building electrical installations.
