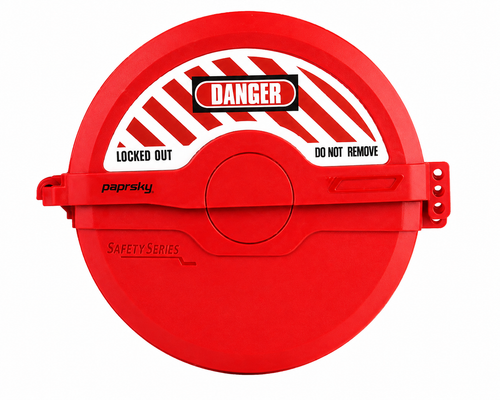

The Paprsky Extra Extra Large Gate Valve Lockout is built to take complete control of oversized valve handwheels during high-risk maintenance, shutdown, and servicing operations. It creates a highly visible physical barrier that prevents unauthorized valve movement, helping teams isolate critical flow lines before work begins.When major water, steam, gas, hydraulic, or chemical systems are involved, incomplete isolation is not an option. This lockout delivers a direct, uncompromising solution for securing large valve-operated energy points. Its interlocking construction allows maintenance crews to deploy the device quickly, while the multi-padlock arrangement keeps every assigned worker in control until the operation is safely cleared.
Specifications
| Product Name |
Extra Extra Large Gate Valve Lockout |
|
LOTO Model |
PS-LOTO-GVL-XLC |
| Material | DuPont engineering plastic |
| Inner Diameter | 467 mm |
| Inner Depth | 75 mm |
| Outside Diameter | 520 mm |
| Outside Height | 84 mm |
| Type |
Safety lockout / Gate valve lockout |
| Suitable Handwheel Diameter | 330 to 450 mm (13 to 18 in.) |
| Padlock Capacity | Accommodates 2 or 4 padlocks |
Key Features
- Oversized Valve Control: Blocks access to large valve handwheels, helping prevent unauthorized operation during maintenance.
- Rapid Two-Piece Deployment: Interlocking halves assemble quickly around the valve wheel for fast, controlled isolation.
- Multi-Worker Safety: Accommodates multiple personal padlocks, keeping the valve locked until every authorized worker has finished.
- Industrial-Grade Visibility: Durable red engineering-plastic construction makes critical isolation points impossible to overlook.
Applications
- Locking out oversized gate valves on water, steam, gas, hydraulic, chemical, and process pipelines.
- Securing critical flow-control points during planned maintenance, repair, inspection, and shutdown activities.
- Supporting group Lockout/Tagout procedures in refineries, utilities, chemical plants, water-treatment facilities, and manufacturing operations.
- Controlling large valve-operated systems where accidental flow release or valve activation could create serious hazards.
Paprsky delivers brutally dependable valve lockouts that keep critical flow lines locked down, visible, and under total worker control.
