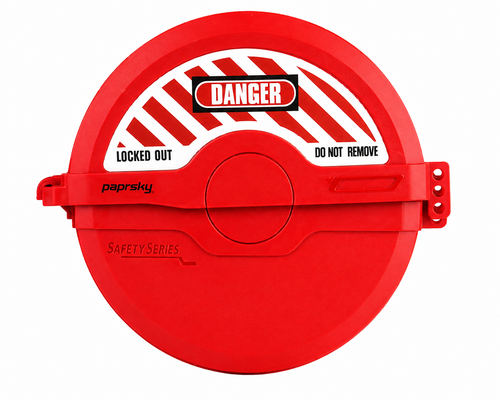

The Paprsky Extra Large Gate Valve Lockout is built to shut down unauthorized valve operation when major industrial flow lines are under maintenance. It creates a powerful physical barrier around the valve handwheel, making it impossible to operate the valve until every authorized lock has been removed and the work is cleared.Designed for large-scale isolation points, this lockout gives maintenance teams direct control over critical water, steam, gas, chemical, and process lines. Its high-visibility red body makes the lockout status impossible to miss, while the two-piece design allows crews to secure large valve wheels quickly without carrying bulky, space-consuming equipment. When valve control cannot be left to chance, the PS-LOTO-GVL-10C delivers a clear, uncompromising LOTO barrier.
Specifications
| Product Name |
Extra Large Gate Valve Lockout |
| LOTO Model | PS-LOTO-GVL-10C |
| Material | DuPont engineering plastic |
| Inner Diameter | 355 mm |
| Inner Depth | 63 mm |
| Outside Diameter | 368 mm |
| Outside Height | 74 mm |
| Type |
Safety lockout / gate valve lockout |
| Suitable Handwheel Diameter | 254 to 355 mm (10 to 13 in.) |
Key Features
- Total Large-Valve Control: Encloses compatible valve handwheels to prevent unauthorized operation during critical servicing and shutdown work.
- Fast Interlocking Deployment: Two-piece construction allows the device to be assembled around the valve wheel quickly and secured as one lockout unit.
- Multi-Worker Protection: Supports multiple padlocks, ensuring the valve remains isolated until every assigned worker has removed their personal lock.
- Built for Industrial Abuse: DuPont engineering plastic construction and bold red identification provide durable, visible lockout control in demanding process environments.
Applications
- Locking out extra-large gate valves on water, steam, gas, hydraulic, chemical, and process pipelines.
- Securing critical valve isolation points during maintenance, inspection, repair, and plant shutdown activities.
- Supporting multi-worker Lockout/Tagout procedures in refineries, utilities, manufacturing plants, chemical facilities, and water-treatment operations.
- Improving hazardous-flow control across large industrial piping and process systems.
Paprsky gate valve lockouts give crews a brutal, highly visible barrier against unauthorized valve operation—keeping critical flow lines locked down until the job is truly complete.
